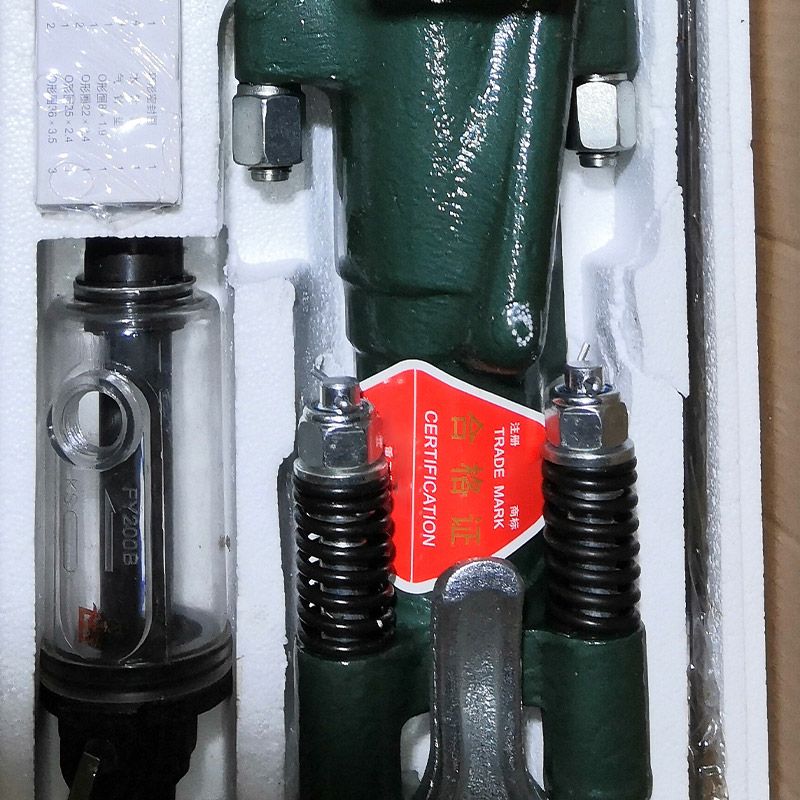

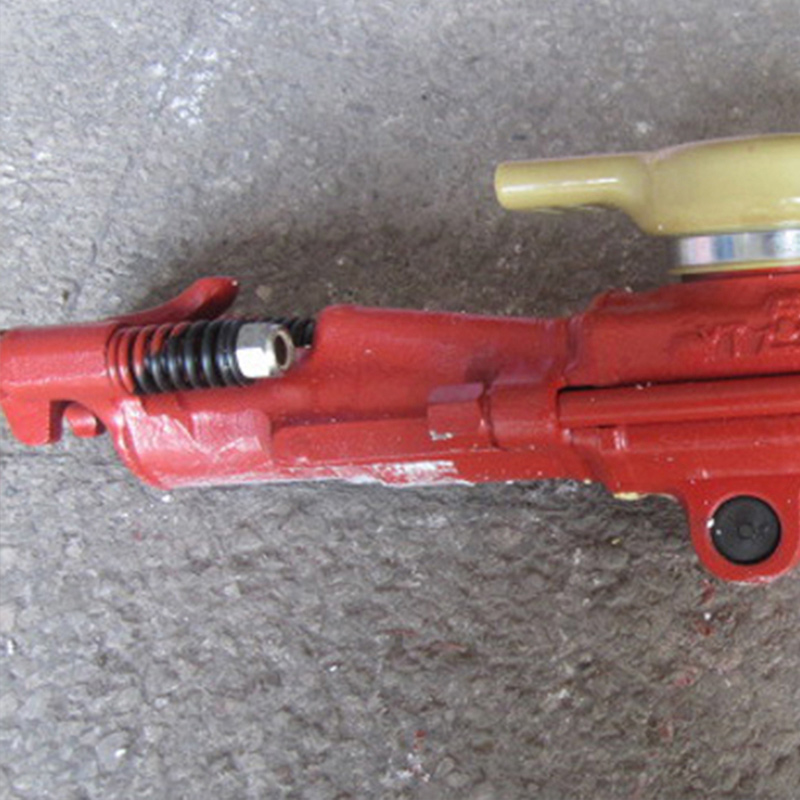

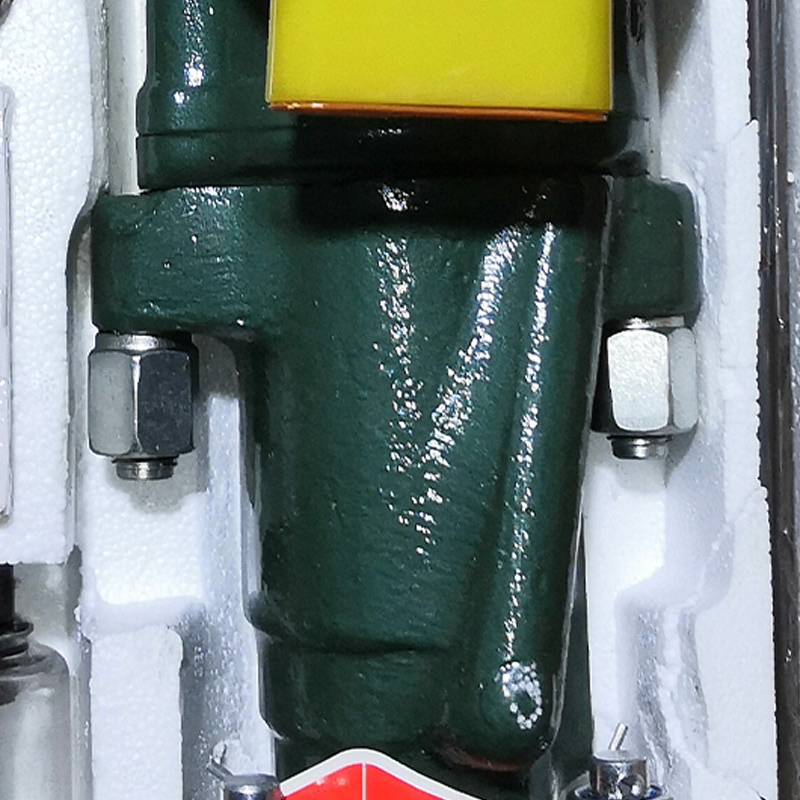

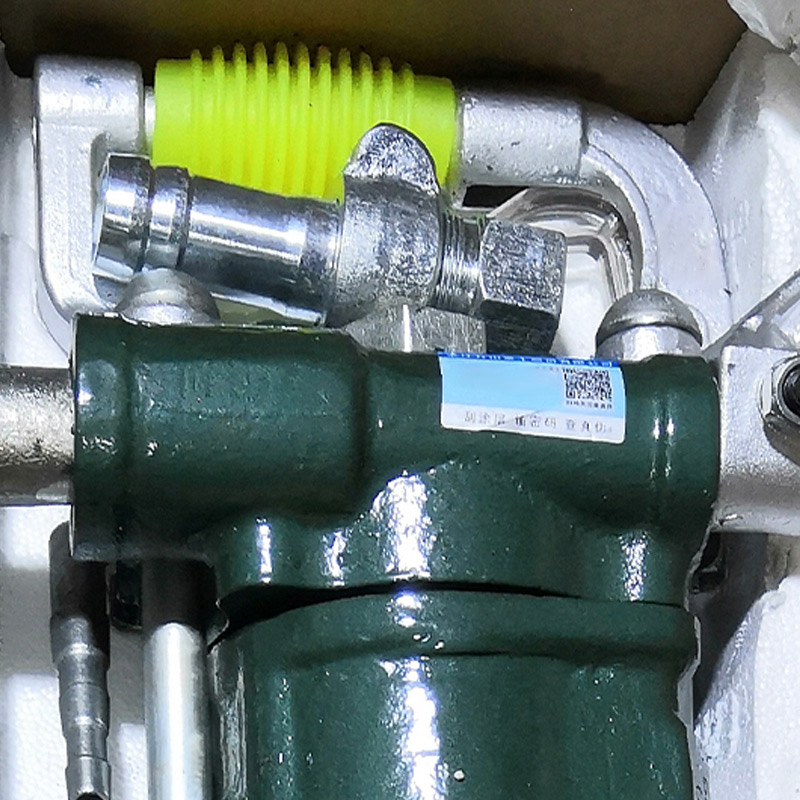

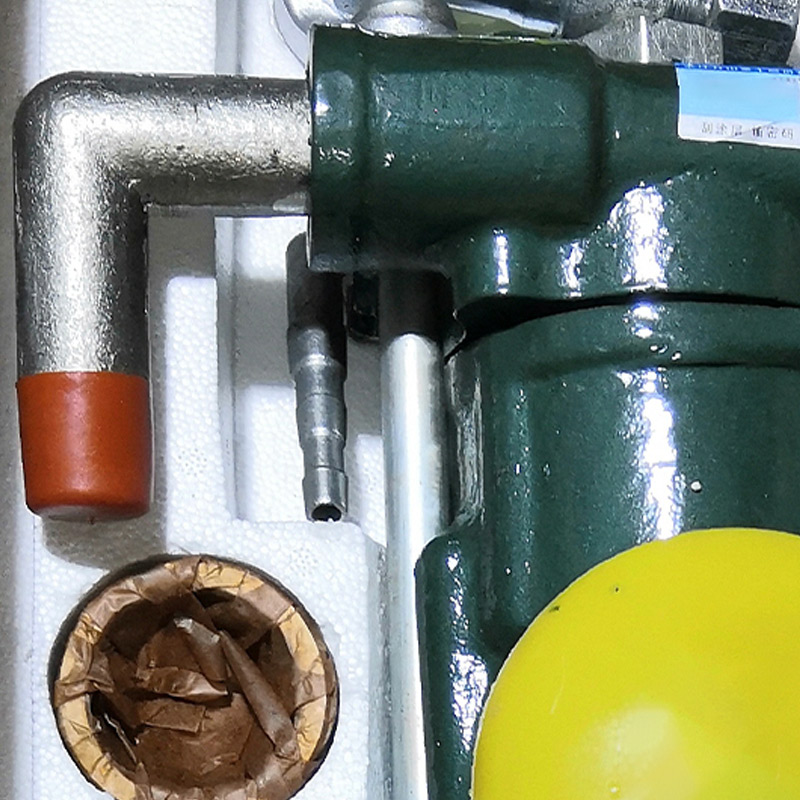

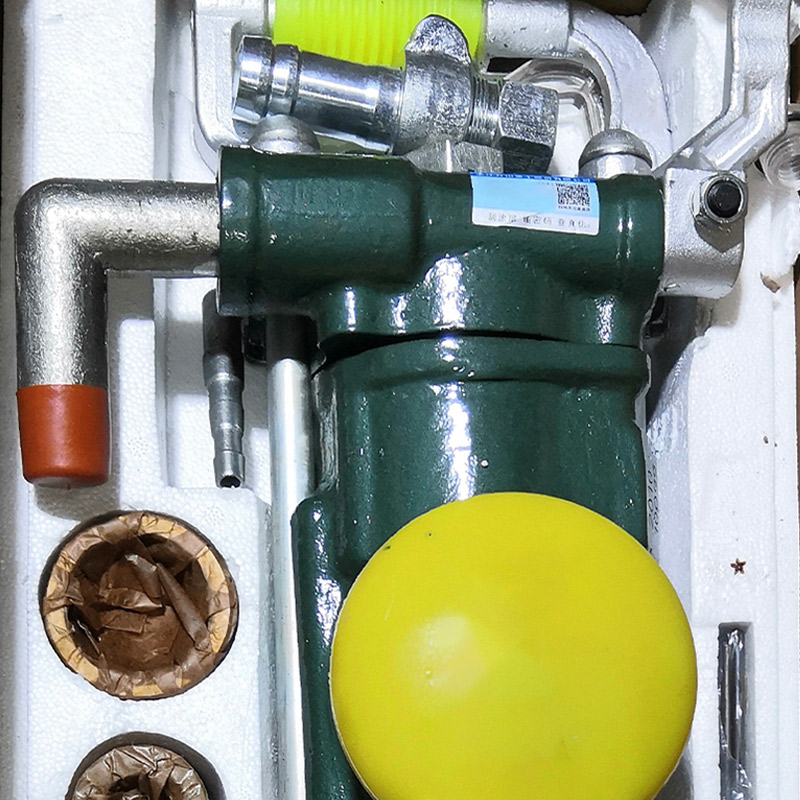

Drilling Rig Rock Drills

Features

Compact structure, reliable, high quality and efficient

Small, portable and flexible, minimize downtime

Endurance, and low cost of use

Easy to operate and maintain

Product Details

Rock Drills Parameters

Model

YT23

YT23D

YT24

ZY24

YT28

MZ7665

YO18

Y18PA

Y19A

YO20

Y24

Y26

weight

24kg

24kg

24kg

25kg

26kg

26kg

18kg

18kg

19kg

20kg

24kg

26kg

Overall dimensions

628mm

668mm

678mm

690mm

661mm

720mm

550mm

550mm

600mm

561mm

604mm

650mm

Stroke

60mm

70mm

70mm

70mm

60mm

70mm

45mm

45mm

54mm

55mm

70mm

70mm

Cylinder Dia

76 mm

70 mm

70 mm

70 mm

80mm

76 mm

58 mm

58 mm

65 mm

63 mm

76 mm

65 mm

Air pressure

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

0.35-0.63mpa

Impact frequency

≥37Hz

≥31Hz

≥31 Hz

≥30Hz

≥37Hz

≥37Hz

≥32Hz

≥30Hz

≥28Hz

≥33Hz

≥27HZ

≥23HZ

Air consumption

≤78L/S

≤67L/S

≤67L/S

≤67L/S

≤81L/S

≤81L/S

≤20L/S

≤24L/S

≤37L/S

≤33L/S

≤50L/S

≤47L/S

Air pipe inside dia

19mm

19mm

19mm

19mm

19mm

19mm

19mm

19mm

19mm

19mm

19mm

19mm

Water pipe inside dia

13mm

13mm

13mm

13mm

13mm

13mm

13mm

13mm

13mm

13mm

13mm

13mm

Drill bit size

32-42mm

32-42mm

32-42mm

32-42mm

32-42mm

32-42mm

32-42mm

32-42mm

32-42mm

32-42mm

32-42mm

32-42mm

Drilll rod size

H22X108mm

H22X108mm

H22X108mm

H22X108mm

H22X108mm

H22X108mm

H22X108mm

H22X108mm

H22X108mm

H22X108mm

H22X108mm

H22X108mm

Impact energy

≥65J

≥65J

≥65J

≥65J

≥70J

≥70J

≥22J

≥22J

≥28J

≥26J

≥65J

≥30J

Applications

Rock Excavation Projects

Surface Mining And Quarrying

Quarrying And Surface Construction

Tunneling And Underground Infrastructure

Underground Mining

Water Well
